Plot evolution of thresholds during test

Here we compute and plot the evolution of the multipactor thresholds during the conditioning process.

Set up

from multipac_testbench import MultipactorTest
from multipac_testbench.data import config_path
from multipac_testbench.data.multipactor_tests import test_140MHz_SWR3_12
from multipac_testbench.instruments import CurrentProbe, FieldProbe, ForwardPower

multipactor_test =  MultipactorTest(test_140MHz_SWR3_12, config_path, freq_mhz=140.0, swr=3.0, is_raw=True)

WARNING:root:ReflectedPower typically measured on channel B, so you should provide the arguments for the channel B fix.
WARNING:root:column_header = 'NI9205_E1' not present in provided file. Skipping associated instrument.
WARNING:root:freq_mhz was supplied explicitly but FrequencySetpoint is also defined in the TOML. The explicit value takes precedence. Consider removing the freq_mhz argument and relying on the TOML.

Compute local multipactor thresholds

Load some utils

from functools import partial
from multipac_testbench.util.multipactor_detectors import quantity_is_above_threshold

Define multipactor criterions:

• Current should be above 12uA

• It should appear on at least 1 consecutive points

current_multipactor_criterions = {'threshold': 12., 'minimum_number_of_points': 1}
current_multipac_detector = partial(quantity_is_above_threshold, **current_multipactor_criterions)

The thresholds are stored in a ThresholdSet object.

thresholds = multipactor_test.determine_thresholds(current_multipac_detector, CurrentProbe)

WARNING:root:Multiple instruments detected at the same position 0.611:
- NI9205_MP4l
- NI9205_MP8l

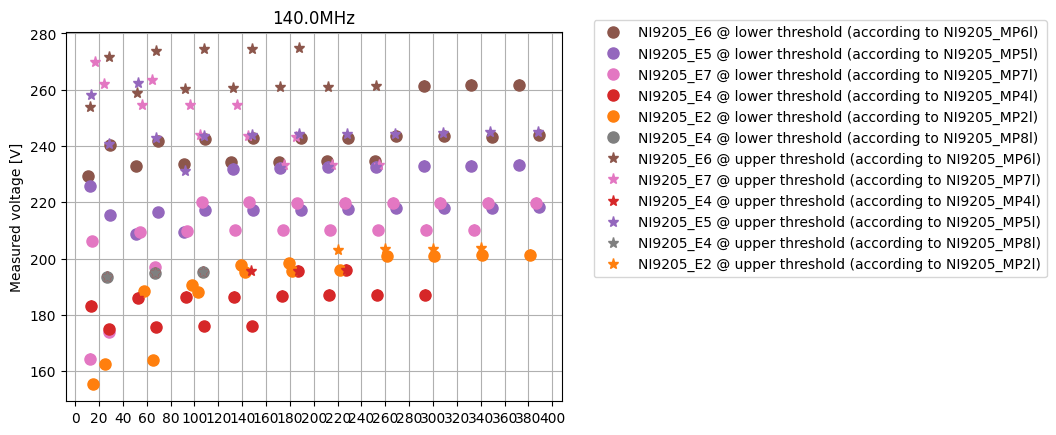

Plot evolution of local voltage thresholds during conditioning

Here, we have as much multipactor thresholds as we have current probes which detected it. We plot local thresholds:

axes, _ = multipactor_test.plot_thresholds(FieldProbe, thresholds, figsize=(8, 8))
axes.legend(loc='upper left', bbox_to_anchor=(1.05, 1.05))

<matplotlib.legend.Legend at 0x7ff4d021b620>

Merge local thresholds into a global

If we want a more global approach, eg to define thresholds as power thresholds, we need to merge the previous thresholds. Here, the merged object will determine when there is multipactor, anywhere in the line.

merged = multipactor_test.determine_thresholds(
    current_multipac_detector,
    CurrentProbe,
    threshold_reducer = "any", # There is multipactor when a multipactor event is detected anywhere in the line
)

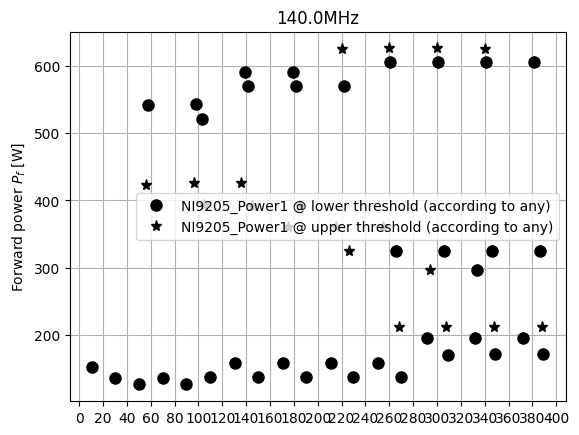

Plot evolution of global power thresholds during the test

axes, _ = multipactor_test.plot_thresholds(ForwardPower, merged, figsize=(8, 8), global_multipactor=True)
